Fusion 3
Your turnkey broadcast graphics system.
Fusion 3 is our next gen live graphics and media playback system. Experience 2x the RAM and amp in power to design and deliver the ultimate in production value.
Press power and go.
Fusion 3 delivers your on-air graphics combining hardware and software in one dynamic device. Power your broadcast with a sophisticated combination of ultra portable hardware and Captivate (Titler Live) Broadcast software designed for broadcasters and a variety of enterprise markets. Go from unbox to broadcast in the same day.
<!–
–>
Fusion 3 features Captivate (Titler Live) Broadcast.
Now you can deliver unlimited layers of live animated graphics for all your broadcasting needs with Captivate (Titler Live) Broadcast—directly in Fusion 3. Captivate (Titler Live) Broadcast allows you to integrate your data in real-time and create high quality graphics on-the-fly.
Amp up production value with a proven powerhouse.
Whether you want full customization or turnkey graphics on the fly, Captivate (Titler Live) Broadcast ($4,999 value) brings high production value to your broadcast in minutes.
We've loaded it with everything you need to look good, fast.
Customize hundreds of designs with Title Designer.
Choose from 1000+ fully customizable pre-made graphic templates or easily create custom motion graphics using its built-in Title Designer.
Captivate (Titler Live) Broadcast comes loaded with a full motion editor, hundreds of built-in effects, and can even import your existing graphics and Adobe assets.
Import After Effects directly into NewBlue Captivate.
Open After Effects projects directly in Captivate Broadcast! Connect live data controllers, from scoreboards to spreadsheets.
Watch the fields in your graphics animate individually as they change in real time, just the way you designed them to.
Display data in real-time.
Import your data from Excel or Google spreadsheets and tables, XML, CSV, JSON, text files, and more.
Using Captivate (Titler Live) Broadcast, you can host all your data in a single file, display data rich infographics such as leaderboards and create instant lower thirds.
Incorporate scoreboards and statistics.
Drive scoreboard data with realtime reading of JSON and XML files. Bring in scoreboard data from Daktronics, Stat Crew, or Sportzcast.
You can also control your scoreboard directly from Captivate's interface.
Streamlined control of Instant Replay.
Capture every angle with multi-camera selections, and bring your audience closer to the action with slow-mo analyses and dramatic recaps.
Enhance your instant replay experience by customizing it with a suite of available transitions and stingers with dynamic text, color, and image fields, you can tailor each element on the fly for engaging and seamless live transitions.
Choose from three models.
Regardless of your live environment, we have the Fusion 3 for you.
Fusion 3 NDI
MSRP: $8,995 (International prices may vary)
Connect your Fusion 3 device to your setup over ethernet using NDI for high value live production.
- Captivate (Titler Live) Broadcast included.
- NDI.
- 4K resolution.
- Priority support.
- One year manufacturer's warranty.
- Expert training such as workflow design and creative operation.
Fusion 3 SDI
MSRP: $9,995 (International prices may vary)
Connect to your broadcast set up using conventional SDI key and fill.
- Captivate (Titler Live) Broadcast included.
- NDI.
- SDI.
- Priority support.
- One year manufacturer's warranty.
- Blackmagic DeckLink Duo 2 for HD resolution workflows up to 1080p60.
- Expert training such as workflow design and creative operation.
Fusion 3 Extreme
MSRP: $18,995 (International prices may vary)
Get the top-of-the-line extreme version of Fusion with priority support.
- Everything included in Fusion 3 SDI.
- Two year manufacturer's warranty.
- AJA 44 Corvid for two SDI channels of 4K Key and Fill.
- More memory (64 GB RAM).
At NewBlue, we're here
when you need us.
Our sales, support, and training teams are dedicated to helping you find the answers. Plus, you'll find video tutorials and helpful blog articles to make using NewBlue products even more simple and efficient.
Not sure which solution is right for you? Reach out today!
Compare Fusion 3 models.
Captivate (Titler Live) Broadcast software
Power Supply
300 Watt 80 PLUS®
Gold Certified Flex ATX
300 Watt 80 PLUS®
Gold Certified Flex ATX
600 Watt 1+1 hot swap PSU
Motherboard
Gigabyte A620I AX
Mini ITX Socket AM5
Gigabyte A620I AX
Mini ITX Socket AM5
Gigabyte A620I AX
Mini ITX Socket AM5
Operating System
Windows 11 Pro 64-bit
Windows 11 Pro 64-bit
Windows 11 Pro 64-bit
Processor
AMD- Ryzen 5 7600 Series 6 Core
(3.8 GHz Socket AM5) 65W Processor
AMD- Ryzen 5 7600 Series 6 Core
(3.8 GHz Socket AM5) 65W Processor
AMD- Ryzen 5 7600 Series 6 Core
(3.8 GHz Socket AM5) 65W Processor
Memory
32GB DDR5 4800 MHz RAM (non-ECC)
(16GB x 2 DIMM dual channel configuration)
32GB DDR5 4800 MHz RAM (non-ECC)
(16GB x 2 DIMM dual channel configuration)
64GB DDR5 4800 MHz RAM (non-ECC)
(16GB x 2 DIMM dual channel configuration)
Graphics
AMD Radeon™ Graphics
2 GPU cores,2200MHz
AMD Radeon™ Graphics
2 GPU cores,2200MHz
AMD Radeon™ Graphics
2 GPU cores,2200MHz
Storage
1 x 500 GB Western Digital BlueSN 580 Series
M.2 2280 NVMe 1.3 PCI Express 3.0 x 4 SSD
1 x 500 GB Western Digital BlueSN 580 Series
M.2 2280 NVMe 1.3 PCI Express 3.0 x 4 SSD
1 x 500 GB Western Digital BlueSN 580 Series
M.2 2280 NVMe 1.3 PCI Express 3.0 x 4 SSD
Expansion slots
Slot - 1 PCI Express 3.0 x16 (x16 electrical)
None -Perforated slot blocker
Slot - 1 PCI Express 3.0 x16 (x16 electrical)
Blackmagic DeckLink Duo 2 installed
Slot - 1 PCI Express 3.0 x16 (x16 electrical)
AJA Corvid 44 12G installed
External ports
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Audio
Realtek® ALC887 codec
High Definition Audio codec 2/4/5.1/7.1-channel
Realtek® ALC887 codec
High Definition Audio codec 2/4/5.1/7.1-channel
Realtek® ALC887 codec
High Definition Audio codec 2/4/5.1/7.1-channel
Support and training
3 Hours Onboarding Training
3 Hours Onboarding Training
5 Hours Onboarding Training
Dimensions
Small form-factor 1U (1.75") rack height
10-inch deep chassis
1.75″ H x 16.77″ W x 10.5″ D
Small form-factor 1U (1.75") rack height
10-inch deep chassis
1.75″ H x 16.77″ W x 10.5″ D
2U (3.5") rack height
iStar D200 chassis to support 1+1 PSU
3.5″ H x 16.77″ W x 10.5″ D
Specifications.
Fusion 3 NDI
Operating System
Microsoft Windows 11 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 7600G 3.8 GHz 6-core
Memory - 32GB DDR4 4800 MHz
Graphics - AMD Radeon™ 2200MHz, 2 graphics cores
Storage - 500GB WD Blue SN580 M.2 2280 NVMe SSD
Front Ports
- 2 USB 3.0
Microsoft Windows 11 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 7600G 3.8 GHz 6-core
Memory - 32GB DDR4 4800 MHz
Graphics - AMD Radeon™ 2200MHz, 2 graphics cores
Storage - 500GB WD Blue SN580 M.2 2280 NVMe SSD
Front Ports
- 2 USB 3.0
Rear Ports
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
1.75″ H x 16.77″ W x 10.5″ D
(1U rack height)
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
1.75″ H x 16.77″ W x 10.5″ D
(1U rack height)
Fusion 3 SDI
Operating System
Microsoft Windows 11 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 7600G 3.8 GHz 6-core
Memory - 32GB DDR4 4800 MHz
Graphics - AMD Radeon™ 2200MHz, 2 graphics cores
Storage - 500GB WD Blue SN580 M.2 2280 NVMe SSD
Video I/O - 2 HD-SDI Key/Fill Pairs
Blackmagic DeckLink Duo 2
Front Ports
- 2 USB 3.0
Microsoft Windows 11 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 7600G 3.8 GHz 6-core
Memory - 32GB DDR4 4800 MHz
Graphics - AMD Radeon™ 2200MHz, 2 graphics cores
Storage - 500GB WD Blue SN580 M.2 2280 NVMe SSD
Video I/O - 2 HD-SDI Key/Fill Pairs
Blackmagic DeckLink Duo 2
Front Ports
- 2 USB 3.0
Rear Ports
- 5 SDI Connectors - 4 video, 1 genlock (supports 2 key & fill pairs)
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
1.75″ H x 16.77″ W x 10.5″ D
(1U rack height)
- 5 SDI Connectors - 4 video, 1 genlock (supports 2 key & fill pairs)
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
1.75″ H x 16.77″ W x 10.5″ D
(1U rack height)
Fusion 3 Extreme
Operating System
Microsoft Windows 10 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 5600G 3.9 GHz 6-core
Memory - 32GB DDR4 3200 MHz
Graphics - AMD Radeon™ 1900MHz, 7 graphics cores
Storage - 500GB WD Blue SN550 M.2 NVMe SSD
Video I/O - 2 4K-SDI Key/Fill Pairs
Blackmagic DeckLink 8K Pro

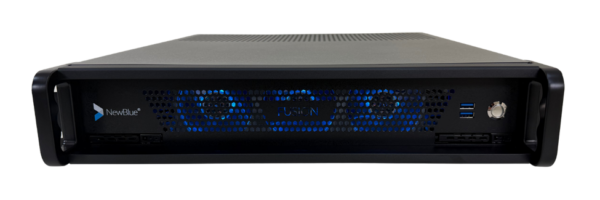

Front Ports
- 2 USB 3.0
Microsoft Windows 10 Pro 64-bit
Graphics Software
Captivate (Titler Live) Broadcast
Hardware
Processor - AMD Ryzen 5 5600G 3.9 GHz 6-core
Memory - 32GB DDR4 3200 MHz
Graphics - AMD Radeon™ 1900MHz, 7 graphics cores
Storage - 500GB WD Blue SN550 M.2 NVMe SSD
Video I/O - 2 4K-SDI Key/Fill Pairs
Blackmagic DeckLink 8K Pro
Front Ports
- 2 USB 3.0

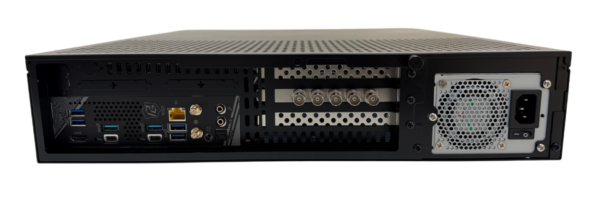

Rear Ports
- 5 SDI Connectors - 4 video, 1 genlock (supports 2 key & fill pairs)
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
2U (3.5") rack height
3.5″ H x 16.77″ W x 10.5″ D
- 5 SDI Connectors - 4 video, 1 genlock (supports 2 key & fill pairs)
- Cat5e Ethernet
- 4 USB 3.2
- 2 USB 2.0
- 2 HDMI
- 1 DisplayPort
- 2 SMA WiFi Antenna Connectors
Power Supply - 300 Watt 80 PLUS Gold
Dimensions
2U (3.5") rack height
3.5″ H x 16.77″ W x 10.5″ D
Features.
Dynamically process audience feedback with high performance. Support NDI & SDI with increased processing power. Leverage the abilities of Captivate (Titler Live) Broadcast for pro graphics with minimal effort.
Control
Real-time playout
Live animated updates per layer
Automated sequencing & looping
Spreadsheet and crawl autoplay mode
Hotkey functionality
Live animated updates per layer
Automated sequencing & looping
Spreadsheet and crawl autoplay mode
Hotkey functionality
Data search & select tool
TriCaster macro control
Remote operation on your network
Network tally support
TriCaster macro control
Remote operation on your network
Network tally support
Outputs
16 channels of 4K-NDI
Dual-channel HD-SDI key/fill (Blackmagic and AJA)
Unlimited graphics per channel
Unlimited graphics per playlist
PNG sequence support
Dual-channel HD-SDI key/fill (Blackmagic and AJA)
Unlimited graphics per channel
Unlimited graphics per playlist
PNG sequence support
HDMI
OBS
Watch Folder
NewTek Airsend
OBS
Watch Folder
NewTek Airsend
Normal-map-textured materials
Depth-of-field control
Blending modes
Additive blend mode
Object locking
Depth-of-field control
Blending modes
Additive blend mode
Object locking
Inputs
Excel spreadsheets
Spreadsheet table support
XML files
Stat Crew statistics - football
Stat Crew® scoreboards
Daktronics® scoreboards
Sportzcast scoreboards
Spreadsheet table support
XML files
Stat Crew statistics - football
Stat Crew® scoreboards
Daktronics® scoreboards
Sportzcast scoreboards
Facebook Live comments
Facebook Live comment polling
Facebook Live reaction polling
X Comments
YouTube Live chats
Facebook Live comment polling
Facebook Live reaction polling
X Comments
YouTube Live chats
GameWisp
Stream Labels
Streamlabs
Tiltify
Twitch
Stream Labels
Streamlabs
Tiltify
Twitch
Text files
RSS feeds
CSV spreadsheets
RSS feeds
CSV spreadsheets
Design
3D animated graphics
Animations, effects & transitions
Native 4K resolution (NDI & SDI only) (Native 8K resolution for Extreme only)
Adobe® After Effects® import
Adobe® Photoshop® import
Title Designer interface
Sports & scoreboard packages
Animations, effects & transitions
Native 4K resolution (NDI & SDI only) (Native 8K resolution for Extreme only)
Adobe® After Effects® import
Adobe® Photoshop® import
Title Designer interface
Sports & scoreboard packages
Social media & polling packages
Tables
Lower thirds
Crawls
Main titles
Motion bugs
Tables
Lower thirds
Crawls
Main titles
Motion bugs
Big or small—every studio needs Fusion 3.
Drives your graphics with versatility.
Bring your production up to speed into the digital era with the multiple channels and bandwidth you'll need. Leverage dual channel HD-SDI key & fill or up to 16 channels of 4K NDI®.
Includes onboarding with tailored training & support.
Experience full technical support, custom product onboarding and training to power up and go live.
Get up and running in three easy steps.
Experience end-to-end graphics in a rackmount chassis running Windows 11.
Design.
Create graphics using the Title Designer. Import your After Effects projects, Photoshop files, or choose from our prebuilt templates.
Connect.
Integrate multiple input and output sources for ultimate control. Fusion 3's flexibility makes each live setup work for you.
Go live.
With minimal prep work and just a few clicks, press power and go live. Let Fusion 3 and Captivate (Titler Live) Broadcast do the rest for you.
Choose from three models.
Regardless of your live environment, we have the Fusion 3 for you.
Fusion 3 NDI
MSRP: $7,995 (International prices may vary)
Connect your Fusion 3 device to your setup over ethernet using NDI for high value live production.
- Captivate (Titler Live) Broadcast integration.
- NDI.
- 4K resolution.
- Priority support.
- Two year manufacturer's warranty.
- Expert training such as workflow design and creative operation.
Fusion 3 SDI
MSRP: $9,995 (International prices may vary)
Connect to your broadcast set up using conventional SDI key and fill.
- Captivate (Titler Live) Broadcast integration.
- NDI.
- SDI.
- Priority support.
- Two year manufacturer's warranty.
- Blackmagic DeckLink Duo 2 for HD resolution workflows up to 1080p60.
- Expert training such as workflow design and creative operation.
Fusion 3 Extreme
MSRP: $18,995 (International prices may vary)
Get the top-of-the-line extreme version of Fusion with priority support.
- Everything included in Fusion 3 SDI.
- Two year manufacturer's warranty.
- AJA 44 Corvid for two SDI channels of 4K Key and Fill.
- More memory (64 GB RAM).
Tutorials
See what you can achieve with NewBlue solutions. Check out our library of tutorials and video walkthroughs.
Blog
Browse our latest articles, blogs, and customer stories.
