EMEA Fusion for unmatched production power experience.
Seamlessly versatile production tool & multi-channel key & fill CG solution starting at just €4995.
Press power and go.
Fusion delivers on-air graphics in a variety of hardware options all with live broadcast software to suit your specific needs. Power your broadcast with a sophisticated combination of ultra-portable hardware and Captivate software designed for corporate, sports, television, and major live events.

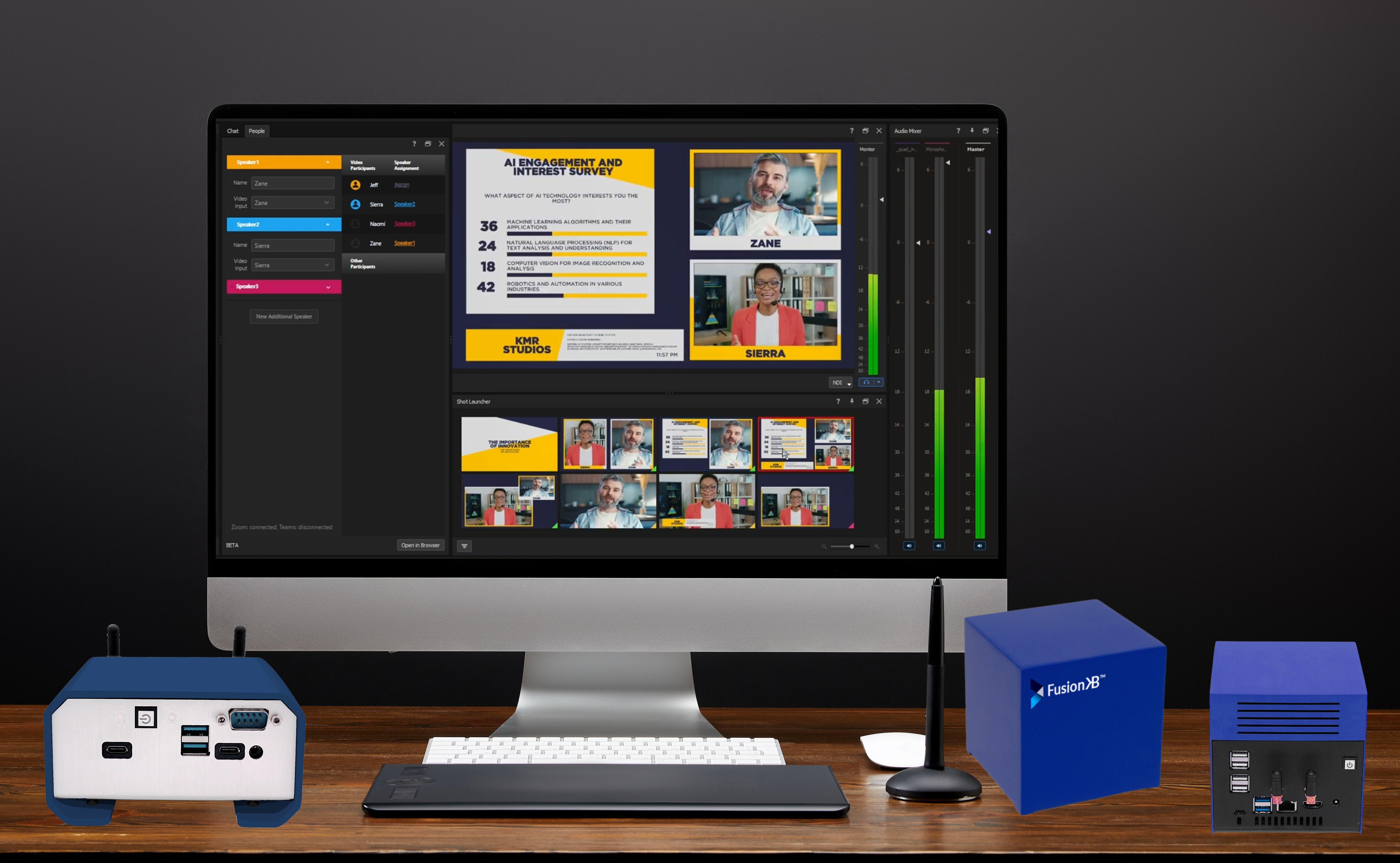

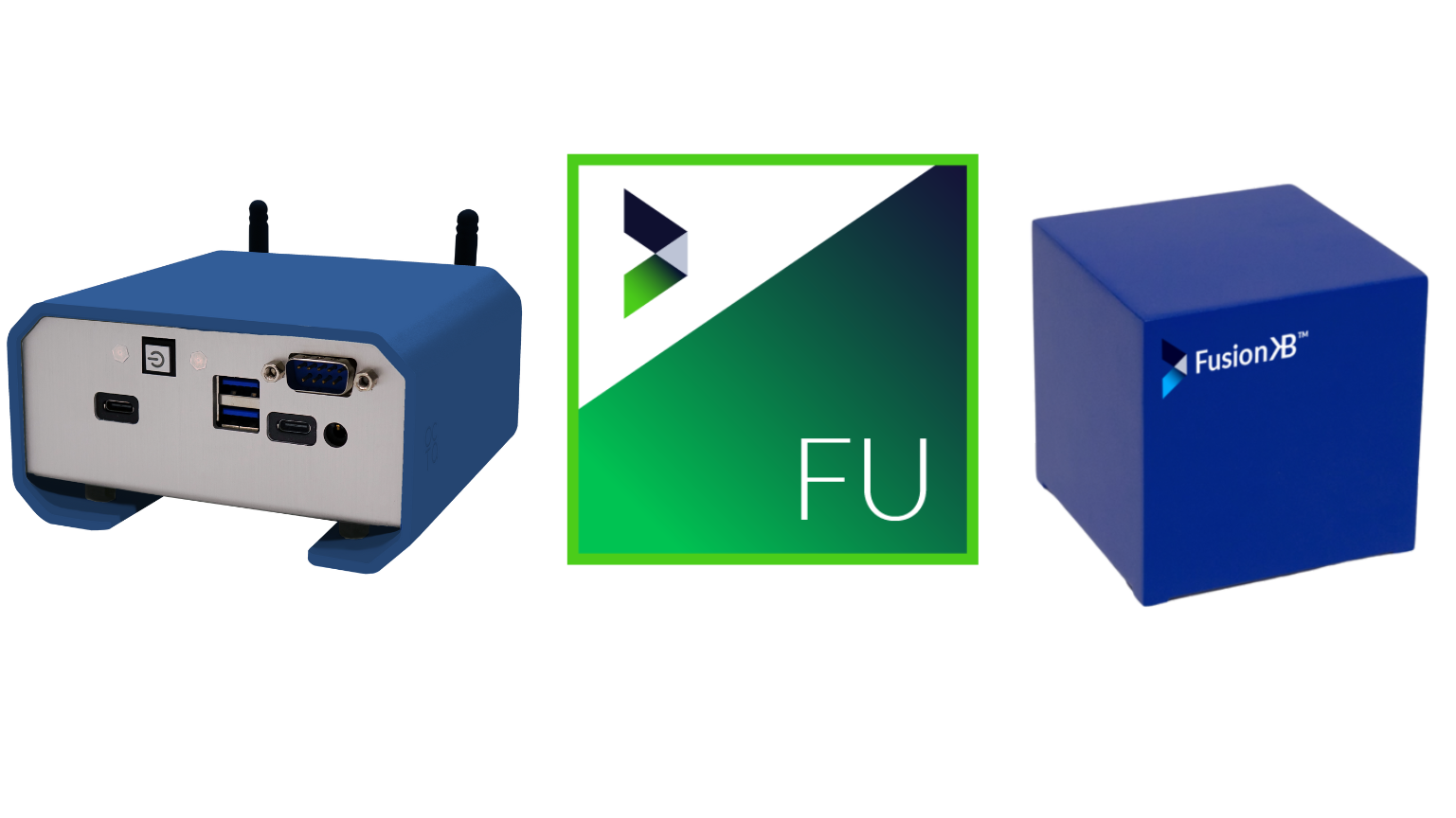

Fusion KB: The ultimate Zoom/Teams graphic production tool.
The Fusion KB is a compact, all-in-one hardware device that transforms your Zoom & Teams experience with powerful production capabilities.
Fusion KB
- Dynamic graphics: Add titles, graphics, data visualizations, video clips, and more, all within a single, intuitive interface.
- Seamless keying: Effortlessly achieve clean, real-time keying integration.
- Flexible output: Goes back to your Zoom/Teams meeting, out to RTMP streaming platforms, NDI, or SDI (with USB-C IO).
Seamless interaction & dynamic flow.

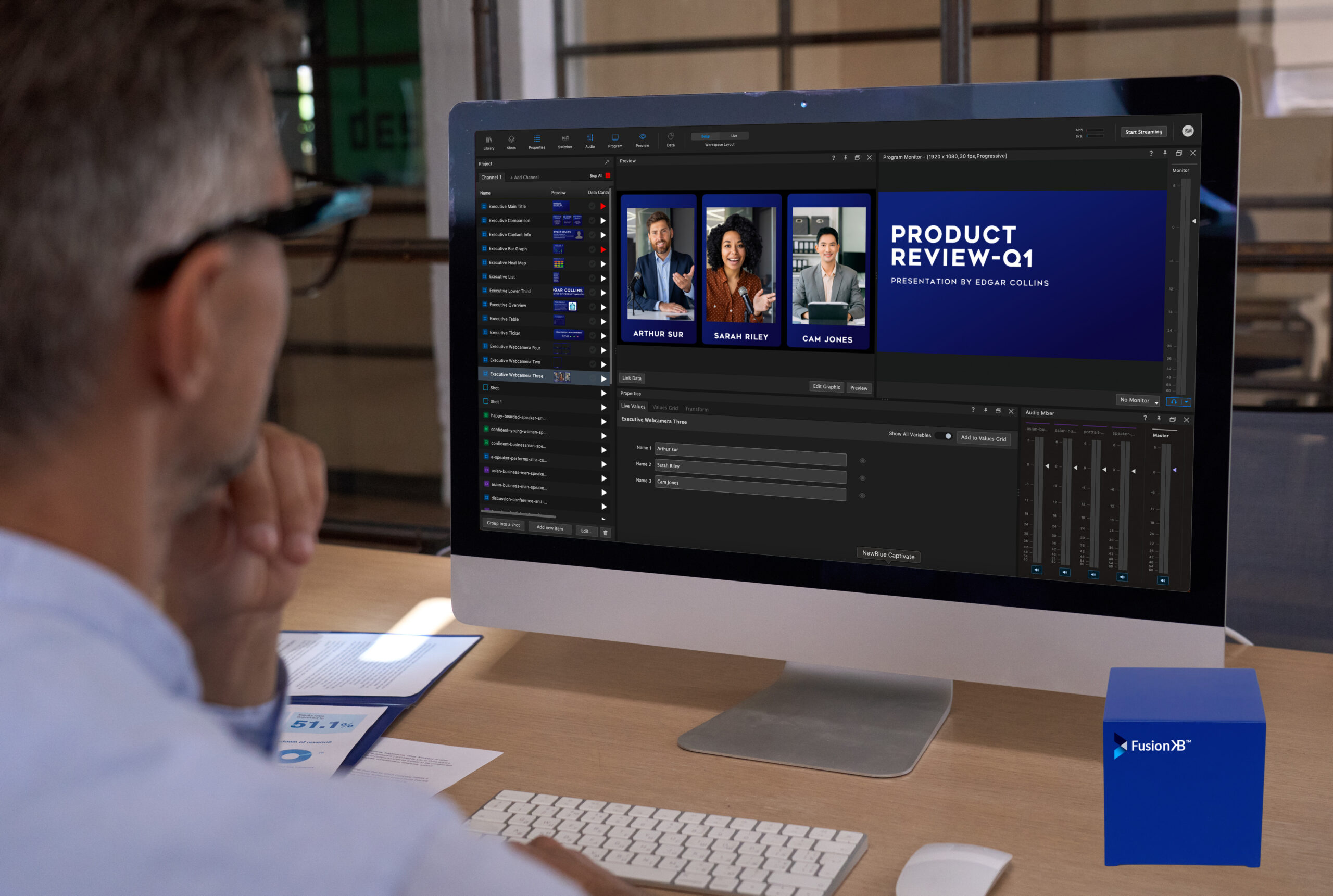

- Manage guests with ease, incorporating individual video, names, screen shares, plus live chat and Q&A for dynamic audience interaction.
- Effortlessly switch key moments between pre-configured Shot Layouts, providing polished continuity.
Professional sound, flexible output.
- Flexible output options enable you to stream back to your Zoom/Teams productions, out to RTMP platforms, or integrate seamlessly via NDI.
- The built-in, automated mixer ensures clear, focused audio throughout.
Features.
Dynamically process audience feedback with high performance. Support NDI and RTMP streaming with increased processing power. Leverage the abilities of Captivate for pro graphics with minimal effort.
Control
Real-time playout
Live animated updates per layer
Spreadsheet and crawl autoplay mode
Hotkey functionality
Live animated updates per layer
Spreadsheet and crawl autoplay mode
Hotkey functionality
Outputs
1 channel
25 total layers
Unlimited simultaneous live layers
25 total layers
Unlimited simultaneous live layers
Zoom and Teams
NDI
HDMI
SDI Key & Fill (With Blackmagic ultra HD mini)
NDI
HDMI
SDI Key & Fill (With Blackmagic ultra HD mini)
Data Inputs
Google Sheets
Excel spreadsheets
CSV spreadsheets
Text files
Excel spreadsheets
CSV spreadsheets
Text files
Zoom & Teams Live comments
Zoom & Teams Live Q&A
Facebook Live comments
Zoom & Teams Live Q&A
Facebook Live comments
X(formerly Twitter) comments
YouTube Live chats
RSS feeds
YouTube Live chats
RSS feeds
Design
3D animated graphics
Animations, effects & transitions
Adobe® Photoshop® import
Adobe® After Effects® import
Animations, effects & transitions
Adobe® Photoshop® import
Adobe® After Effects® import
Main titles
Lower thirds
Motion bugs
Title Designer interface
Lower thirds
Motion bugs
Title Designer interface
Crawls
Social media & polling packages
Tables & Bar Graphs
Social media & polling packages
Tables & Bar Graphs
Fusion featuring Captivate Broadcast
Deliver unlimited layers of live animated graphics for all your broadcasting needs with Captivate Broadcast—directly in Fusion. This broadcast graphics generator enables real-time data integration and the creation of high-quality on-the-fly graphics.
Amp up production value with a proven powerhouse.
From sports and stadiums to major live events and TV, Fusion with Captivate Broadcast delivers the most value-packed and cost-effective solution for professional, dynamic productions.
Customize hundreds of designs with Title Designer.
Choose from 1000+ fully customizable pre-made graphic templates or easily create custom motion graphics using its built-in Title Designer.
Captivate Broadcast comes loaded with a full motion editor, hundreds of built-in effects, and can even import your existing graphics and Adobe assets.
Import After Effects directly into NewBlue Captivate.
Open After Effects projects directly in Captivate Broadcast! Connect live data controllers, from scoreboards to spreadsheets.
Watch the fields in your graphics animate individually as they change in real time, just the way you designed them to.
Connect data directly into your graphics.
Utilize the extensive integration options with Captivate Broadcast to connect live data to your graphics to play in real time.
Or take advantage of our professional services to build a custom controller or graphic collection to suit your specific needs.
Compatibility and Requirements.
Software and hardware
Operating System
Microsoft Windows 11 (IoT)
Graphics Software
Captivate KB
Microsoft Windows 11 (IoT)
Graphics Software
Captivate KB
Rear Ports
3 USB 3.2 & 3 USB 2.0 Ports
2 Thunderbolt™ (DP 1.4a & USB 4) Type-C
2 HDMI 2.1 TMDS Compatible Ports
1 RJ45 2.5 gb/s
You can also wirelessly connect to the internet with the Intel® Wi-Fi 6E.
Dimensions & Weight
4.7 x 4.7 x 4.7 in (5.5 in with antenna)
3 USB 3.2 & 3 USB 2.0 Ports
2 Thunderbolt™ (DP 1.4a & USB 4) Type-C
2 HDMI 2.1 TMDS Compatible Ports
1 RJ45 2.5 gb/s
You can also wirelessly connect to the internet with the Intel® Wi-Fi 6E.
Dimensions & Weight
4.7 x 4.7 x 4.7 in (5.5 in with antenna)
OUPUTS
NDI
HDMI
SDI (Blackmagic Design Ultra HD mini)
RTMP
ZOOM
TEAMS
HDMI
SDI (Blackmagic Design Ultra HD mini)
RTMP
ZOOM
TEAMS

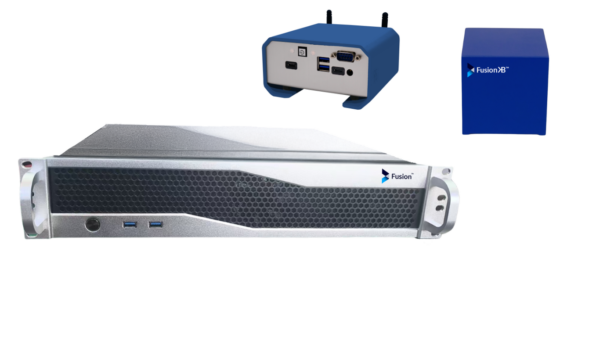

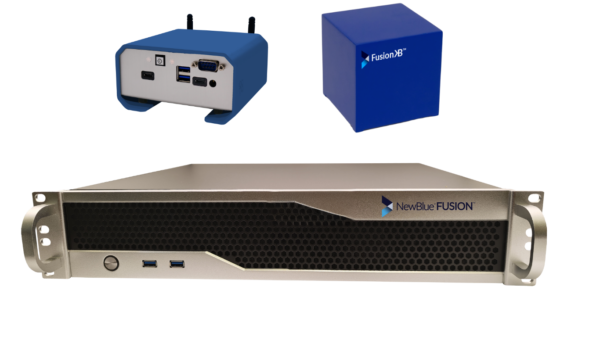

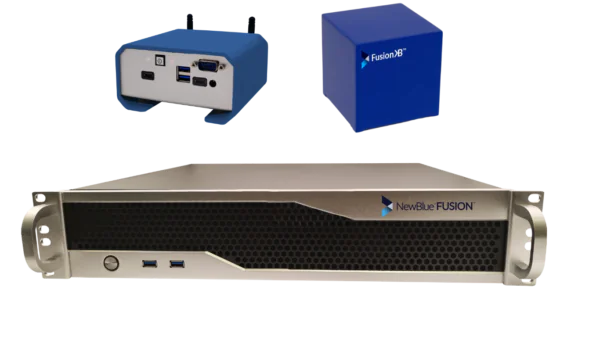

Compare EMEA Fusion models.
Captivate KB
Captivate Broadcast software
Simultaneous video sources
10 x HD streams or
4x4K, 1 x HDMI
Simultaneous live graphic layers
Unlimited
Unlimited
Unlimited
Unlimited
Software integrations
After Effects, Photoshop, Premiere Pro, Zoom, Teams, Google sheets, Excel, spreadsheets, Scoreboard Tool
After Effects, Photoshop, Premiere Pro, Zoom, Teams, Google sheets, Excel, spreadsheets, Scoreboard Tool, JSON, XML, Statcrew, Scorebird, Scoreview
After Effects, Photoshop, Premiere Pro, Zoom, Teams, Google sheets, Excel, spreadsheets, Scoreboard Tool, JSON, XML, Statcrew, Scorebird, Scoreview
After Effects, Photoshop, Premiere Pro, Zoom, Teams, Google sheets, Excel, spreadsheets, Scoreboard Tool, JSON, XML, Statcrew, Scorebird, Scoreview
Built-in customizabe templates
1000+
1000+
1000+
1000+
Power supply
AC-DC 120W Notebook Type
300 Watt 80 PLUS®
Gold Certified Flex ATX
300 Watt 80 PLUS®
Gold Certified Flex ATX
600 Watt 1+1 hot swap PSU
Operating System
Windows 11 Pro 64-bit
Windows 11 Pro 64-bit
Windows 11 Pro 64-bit
Processor (CPU)
Core Ultra 7
Core Ultra 5 245F
Core Ultra 5 245F
Core Ultra 9 285K
RAM (memory)
32GB
DDR 32GB
DDR 32GB
DDR 64GB
Storage
SSD M.2 G4 1TB
1TB SSD GEN4
1 x 500 GB Western Digital BlueSN 580 Series
M.2 2280 NVMe 1.3 PCI Express 3.0 x 4 SSD
1 x 500 GB Western Digital BlueSN 580 Series
M.2 2280 NVMe 1.3 PCI Express 3.0 x 4 SSD
Graphics card (GPU)
NVIDIA GeForce RTX 4060
VGA LP400 4GB
VGA LP400 4GB
VGA LP400 4GB
NDI
External ports
1 x Port RJ45
2x HDMI 2.1 TMDS Compatible
3 x USB 3.2
3 x USB 2.0
Thunderbolt (DP 1.4a & USB 4) Type C
2 x SMA antenna
1 x audio jack
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
1 x Display ports
1 x HDMI port
1 x USB Type-C® w/USB 3.2 Gen 1 Support
1 x USB 3.2 Gen 2 Type-A port(red)
1 x 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
SDI
BLACK MAGIC DeckLink Duo 2
B: Blackmagic 8K Pro
A: AJA CORVID 44 12G
Dimensions
12 x 12 x 12 cm
(12.7 cm with antenna)
2U RACK NEWBLUE Chassis
2U RACK NEWBLUE Chassis
2U RACK NEWBLUE Chassis
Warranty
Hardware: 3-year warranty
Software: Perpetual license with 1-year support and updates
Hardware: 3-year warranty
Software: Perpetual license with 1-year support and updates
Hardware: 3-year warranty
Software: Perpetual license with 1-year support and updates
Hardware: 3-year warranty
Software: Perpetual license with 1-year support and updates
Get the Fusion that's right for you.
Create unlimited beautiful lower thirds and dynamic data all with Captivate Broadcast. Choose from specialized versions of Fusion based on your desired connection sources and support needs.
EMEA Fusion NDI
MSRP: $7,995Connect your Fusion device to your setup over ethernet using NDI for high value live production.
- Captivate Broadcast integration.
- NDI.
- 4K resolution.
- Priority support.
- Two year manufacturer's warranty.
- Expert training such as workflow design and creative operation.
EMEA Fusion SDI
MSRP: $9,995Connect to your broadcast set up using conventional SDI key and fill.
- Captivate Broadcast integration.
- NDI.
- SDI.
- Priority support.
- Two year manufacturer's warranty.
- Blackmagic DeckLink Duo 2 for HD resolution workflows up to 1080p60.
- Expert training such as workflow design and creative operation.
EMEA Fusion Extreme B
MSRP: $17,995Get the top-of-the-line extreme version of Fusion with priority support.
- Everything included in EMEA Fusion SDI.
- Two year manufacturer's warranty.
- Blackmagic DeckLink 8K Pro for two SDI channels of 4K Key and Fill.
- More memory (64 GB RAM).
EMEA Fusion Extreme A
MSRP: $19,995Get the top-of-the-line extreme version of Fusion with priority support.
- Everything included in EMEA Fusion SDI.
- Two year manufacturer's warranty.
- AJA Corvid 44 SDI for two SDI channels of 4K Key and Fill.
- More memory (64 GB RAM).
